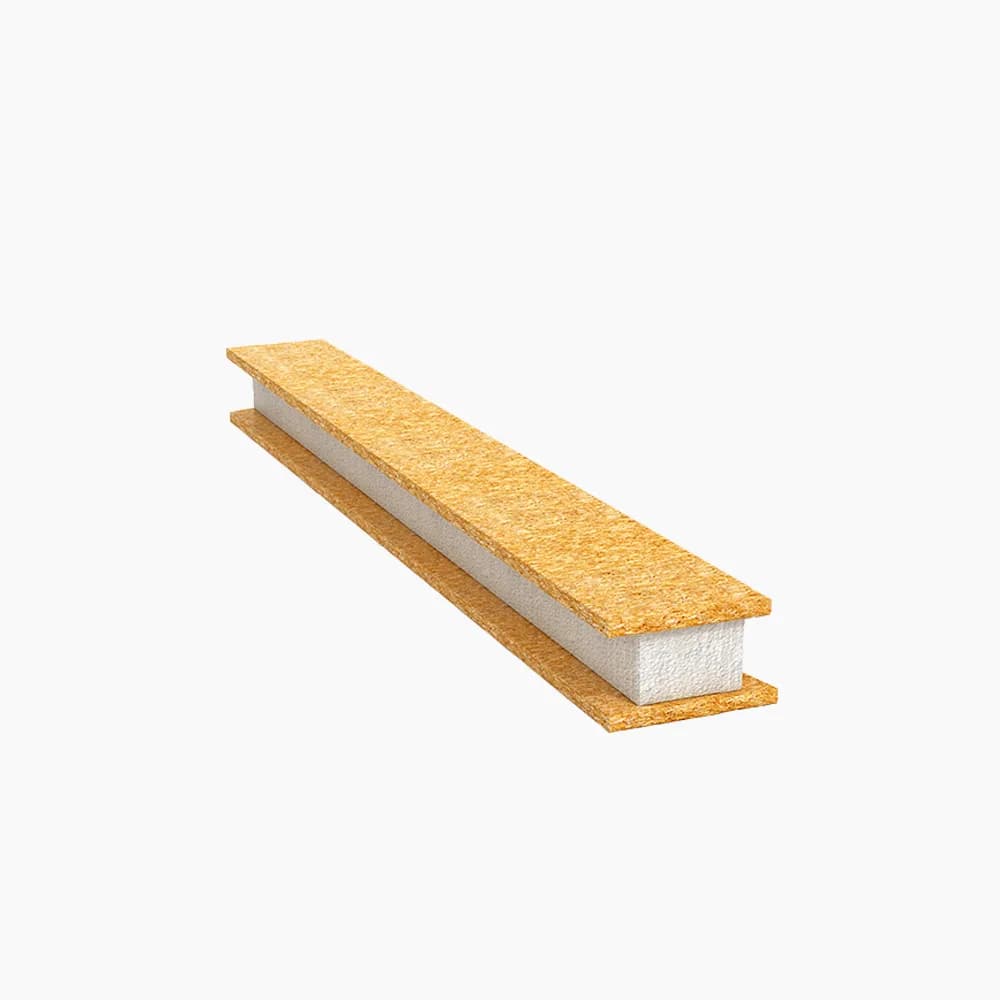

IR Spline Products
From £ 10,50
Our IR Spline range is designed for SIP panel installation, offering precise dimensions and reliable performance for different panel thicknesses. Each spline is manufactured to suit specific panel sizes and is available at a clear unit price plus VAT.
Submit a Request| Product | Length | Width | Thickness | Composition | Price |
|---|---|---|---|---|---|
| IR Spline 75 | 244 mm | 90 mm | 75 mm | 11 mm OSB + 53 mm EPS + 11 mm OSB | £10.50 + VAT |
| IR Spline 100 | 244 mm | 90 mm | 100 mm | 11 mm OSB + 78 mm EPS + 11 mm OSB | £12.50 + VAT |
| IR Spline 125 | 244 mm | 90 mm | 125 mm | 11 mm OSB + 103 mm EPS + 11 mm OSB | £13.50 + VAT |
| IR Spline 150 | 244 mm | 90 mm | 150 mm | 11 mm OSB + 128 mm EPS + 11 mm OSB | £14.50 + VAT |
| IR Spline 175 | 244 mm | 90 mm | 175 mm | 11 mm OSB + 153 mm EPS + 11 mm OSB | £16.00 + VAT |
| IR Spline 200 | 244 mm | 90 mm | 200 mm | 11 mm OSB + 178 mm EPS + 11 mm OSB | £18.00 + VAT |
Purpose: Splines for SIP panel installation, sized to specific panel thicknesses
Length: 244 mm (all products)
Width: 90 mm (all products)
Thickness options: 75, 100, 125, 150, 175, 200 mm
Composition: 11 mm OSB + EPS core (53–178 mm) + 11 mm OSB
Pricing basis: Per unit, plus VAT
Yes — we deliver within the United Kingdom. Delivery is quoted separately based on your postcode and site access.
No. Prices shown are per panel. Delivery costs are calculated separately once we have your postcode and access details.
U-value indicates how well the panel insulates — the lower the U-value, the better the thermal performance.
It depends on how the space will be used and your target performance. As a general rule, thicker insulation cores achieve lower U-values. If you share your project details, we can recommend a suitable specification.
Yes, panels can be trimmed and cut for openings, but we recommend planning layouts in advance to minimise waste and maintain performance.
Store panels flat, off the ground and protected from weather. Keep them covered and dry until they’re installed and fully weatherproofed.
Lead times vary by specification and workload. We’ll confirm the current production and delivery schedule when you place an order or request a quote.
Your postcode, preferred delivery date, and site access details (driveway access, restrictions, or manual carry distance).
Benefits of SIPs
Structural Insulated Panels (SIPs) are at the forefront of construction methods, and a key element to the future of the industry.
- Superior Thermal Performance
- High insulation values reduce heat loss and improve energy efficiency year-round.
- Faster Build Time
- Factory-cut panels significantly reduce on-site construction time.
- Structural Strength
- Engineered panels provide high load-bearing capacity and structural stability.
- Airtight Construction
- Reduced thermal bridging improves internal comfort and lowers energy costs.
- Precision Manufacturing
- CNC-cut panels ensure accurate fitting and reduced material waste.
- Energy & Cost Efficiency
- Lower labour time and improved insulation result in long-term savings.
